DJI DL PZ 17-28 mm T3.0 ASPH Lens

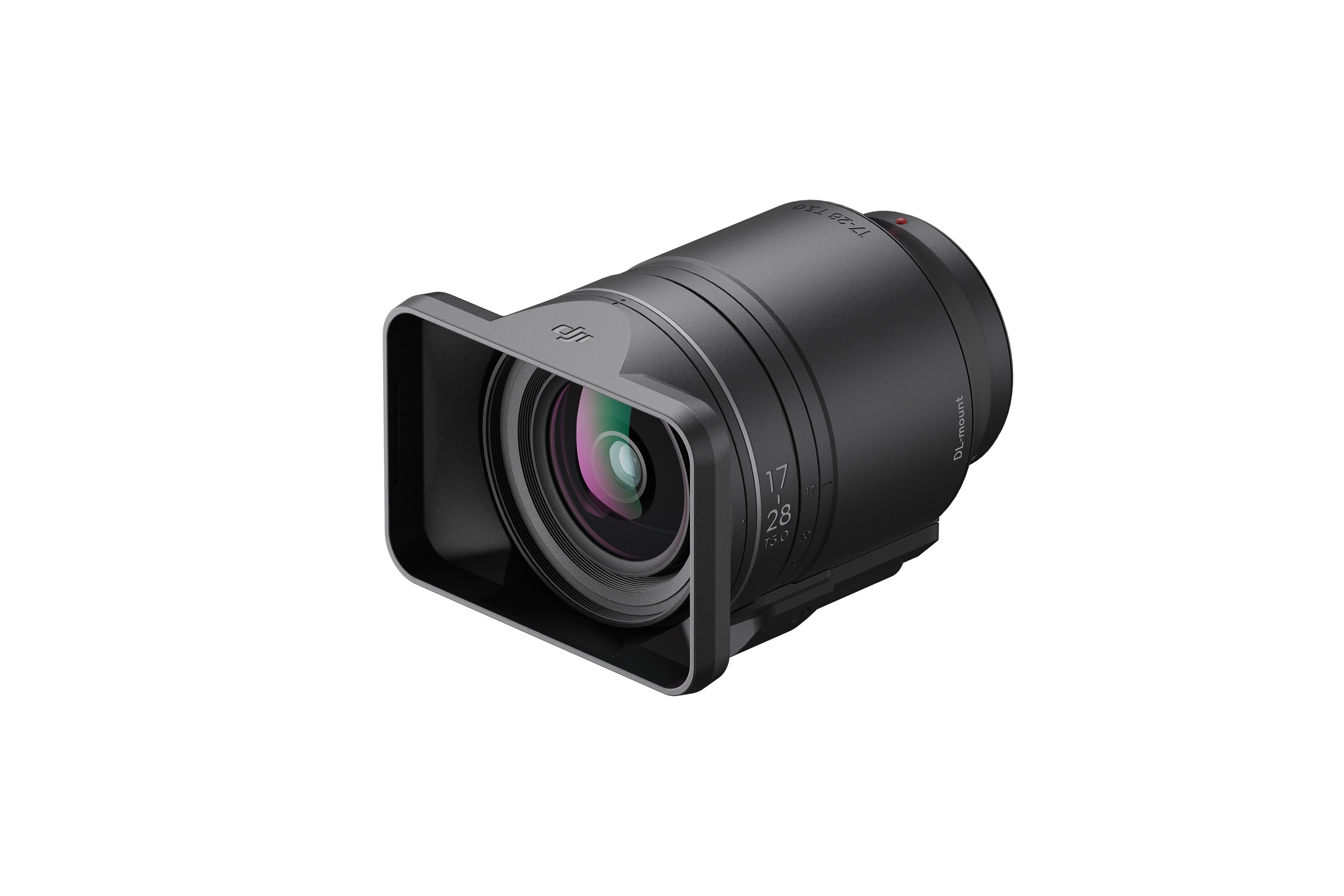

DJI DL PZ 17-28mm T3.0 ASPH is a full-frame DL 17-28mm zoom lens with T3.0 wide aperture, aluminum magnesium alloy body, and 520g weight.

Only 1 unit left

Take a Closer Look

Overview
  • Calibration-Free Focusing Experience

DJI’s first cinema zoom lens DL PZ 17-28 mm T3.0 ASPH covers focal lengths from ultra-wide-angle 17 mm to wide-angle 28 mm to meet the need of professional shooting. Once mounted, the lens is ready to deliver accurate focusing and zoom without calibration.

  • High Resolution From Center to Edge

Ultra-high resolution from center to edge that meets the requirement of 8K sensors for image quality. Delivers sharp imagery and outstanding optical performance.

  • 0.19m Minimum Object Distance

A minimum object distance of 0.19 m can meet the needs of most close-up shots at ultra wide angles.

  • 520g Aluminum Magnesium Alloy Body

The lens design using aluminum magnesium alloy effectively reduces weight to a ultra-light 520 g, while ensuring stiffness and strength.

  • Built-in Servo Zoom Motor

With a servo zoom motor built in, the lens can zoom without having to mount an external focus motor. The non-detachable motor is light and portable.

  • Zoom without Re-balancing

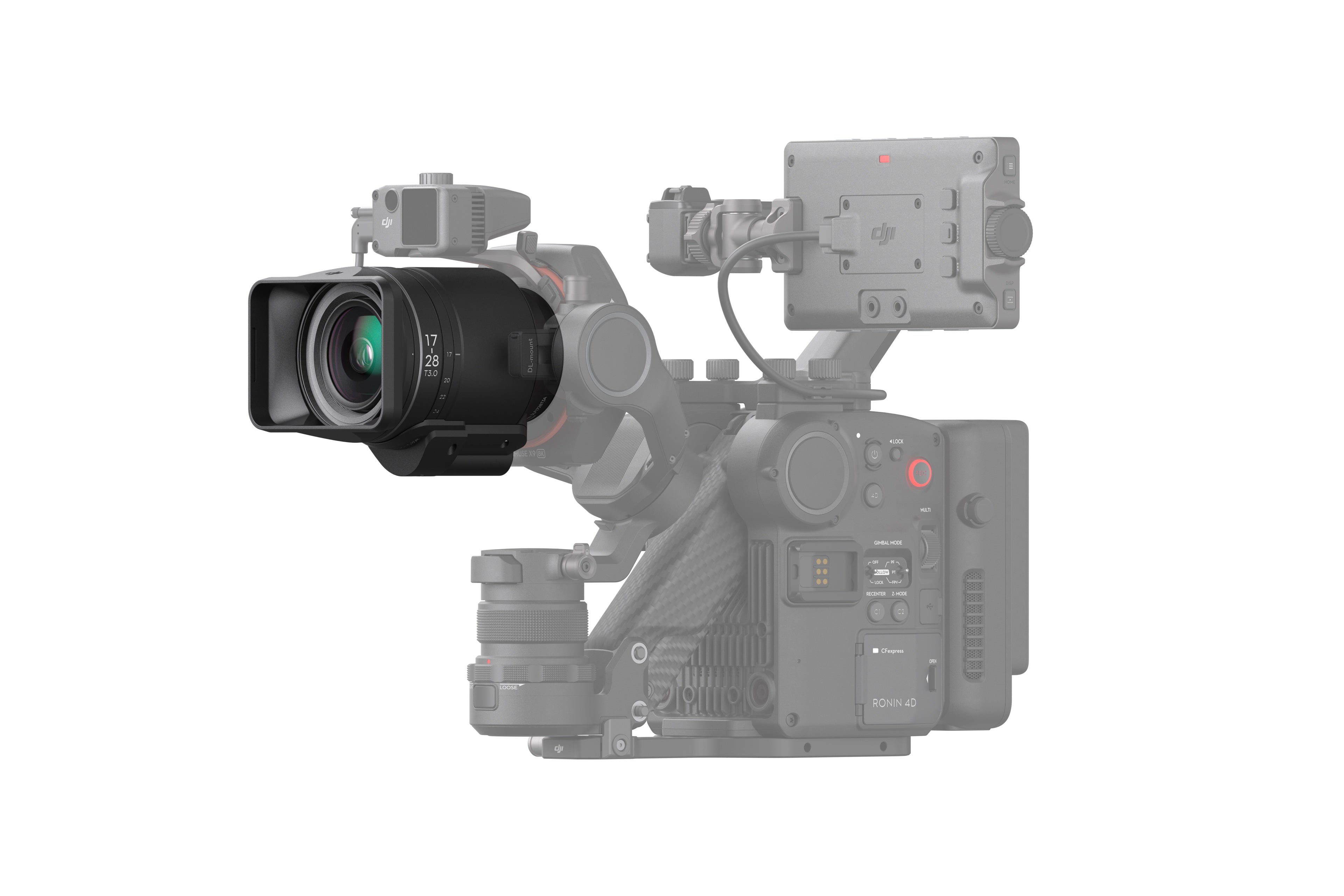

The lens tube moves within 5 mm while zooming. When using with Ronin 4D, re-balancing is not required after zooming.

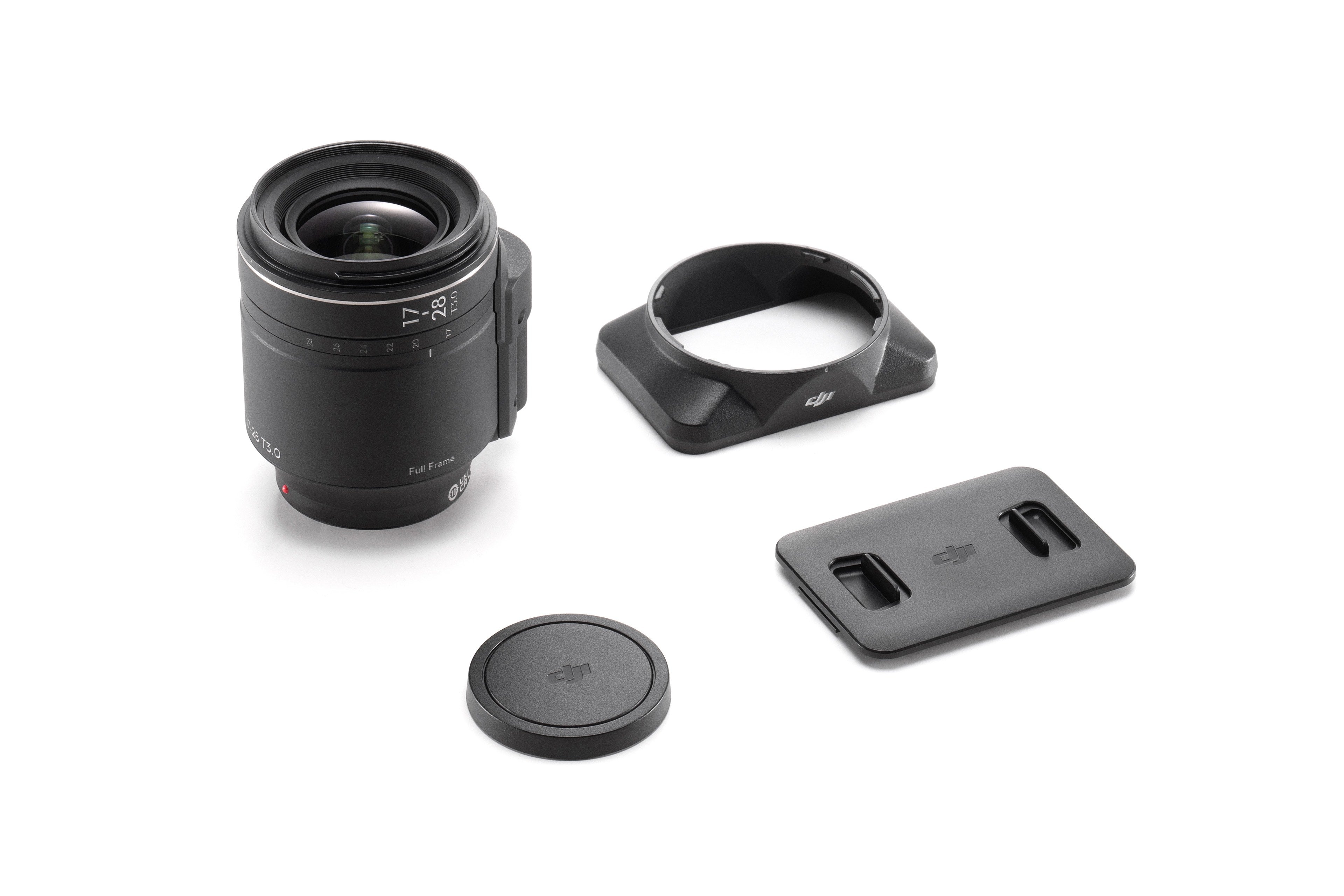

In The Box
  • Lens Front Cap × 1
  • Lens Hood × 1
  • Lens × 1
  • Lens Rear Cap × 1
Specifications

Imager Size: Full frame (36×24 mm)

Focal Length: 17-28 mm

MOD (From Object to Image Plane):

17 mm: 0.19 m

28 mm: 0.26 m

Aperture Range: T3.0 to T22

Filter Diameter: Φ 67 mm

Lens Mount: DL mount

Weight (lens hood included): Approx. 520 g

Operating Temperature: -10° to 55° C (14° to 131° F)

Compatibility

DJI Ronin 4D-6K

DJI Ronin 4D-8K
